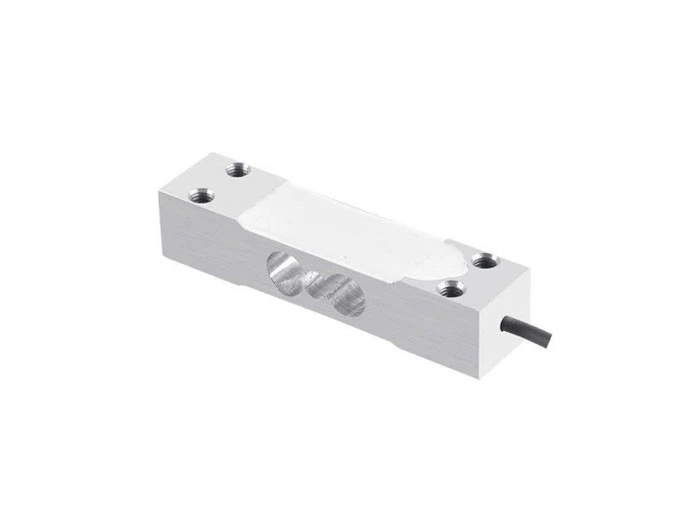

high-precision SINGLE POINT LOAD CELL,
The length of cable can be customized, ordering instructions.
| Rated Capacity: 20,40kg | Dimension: 97x23x21mm | |
Max. platform size: | 250X350mm | |
| Rated output | mV/V | 2.0±0.1 |
| Accuracy class | C3 | |
| Maximum number of verifications intervals | n.. | 3000 |
| Minimum load cell verification intervals | V. | E max/7500 |
| Combined error | %RO | ≤±0.020 |
| Creep | %RO/30min | 0.017 |
| Temperature effect on sensitivity | %RO/℃ | 0.0017 |
| Temperature effect on zero | %RO/℃ | 0.002 |
| Zero balance | %RO | ±5 |
| Input resistance | Q | 401±5 |
| Output resistance | Q | 350±3 |
| Insulation resistance | MQ | 5000 |
| Recommended excitation voltage | V | 10~15 |
| Compensated temperature range | ℃ | -10~+40 |
| Operating temperature range | ℃ | 20~+70 |
| Safe overload | %RO | 150 |
| Ultimate overload | %RO | 200 |
| load cell material | Aluminum | |
| Cable, Length | ø4mm×0.4m * | |
| Method of connecting wire | Red E+ Black E- White S+ Green S- | |
electronic price computing scale
Single point load cell
Anodized surface
high accuracy
competitive price
Mainly used for electronic scales,price computing scales
