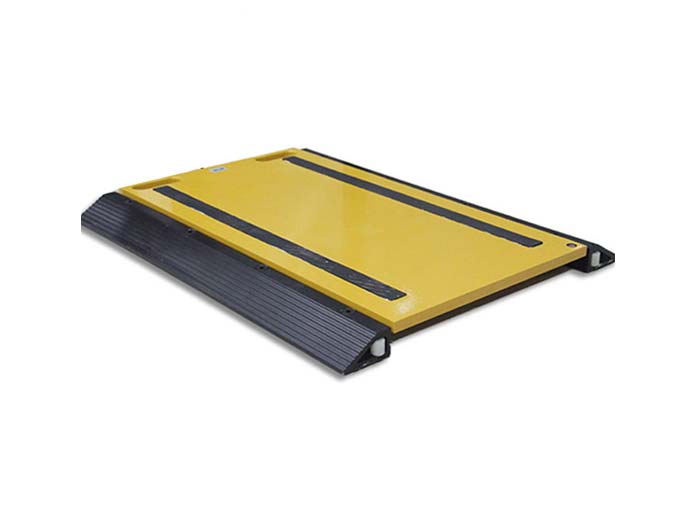

Axle Scales are used to minimize risk of overweight fines and to ensure trucks are not underloaded for maximum productivity. Truck scale is offered in 2 standard sizes, but custom sizes are available. Our axle scales offer an affordable alternative to a full size truck scale and are used by law enforcement agencies, trucking companies, the military, scrap yards and other transport businesses for quick, effective and dependable gathering of axle, group and gross vehicle weight. The ruggedness and modular design makes them ideal for locations where large permanent scale installations are not feasible. The axle scale is typically sold in pairs, and or multiples. They can be used with ramps for above ground installations or flush with concrete for a pit-installed permanent application.
| Model number | Portable Truck Axle Scales |
| Capacity | 10/15/20/25 Tons |
| Division | 1/3000 |
| Platter size | 500*400*29 mm, 700*430*29 mm, 800*430*39 mm |
| Display | LED/LCD+backlight |
| Battery | Rechargeable 6V/4AH lead-acid |
| Working conditions | Temperature 0℃-40℃ |
| Humidity | R.H≤95% |
| Tare range | Tare Weight=max Capacity |
| Units | kg/lb/g/oz etc. optional |
| Power supply | Battery 220V/50HZ or other optional |
Applicable to metallurgy, mining, chemical, food, logistics and other industries, is the ideal choice for weighing trucks, trailers, semi-trailers, container trucks, dump trucks, agricultural vehicles and other heavy-duty vehicles.
Ultra-low, hard aluminum alloy pad, integrated design.
High strength, good repeatability.
Antirust, insterting-in and pulling-out seamless connection, waterproof.
Automatically distinguish vehicle axle model, check if the vehicle is overloaded or not automatically.
Humanized software and hardware design.
With high grade aluminum suitcase, metallic painted, portable.
